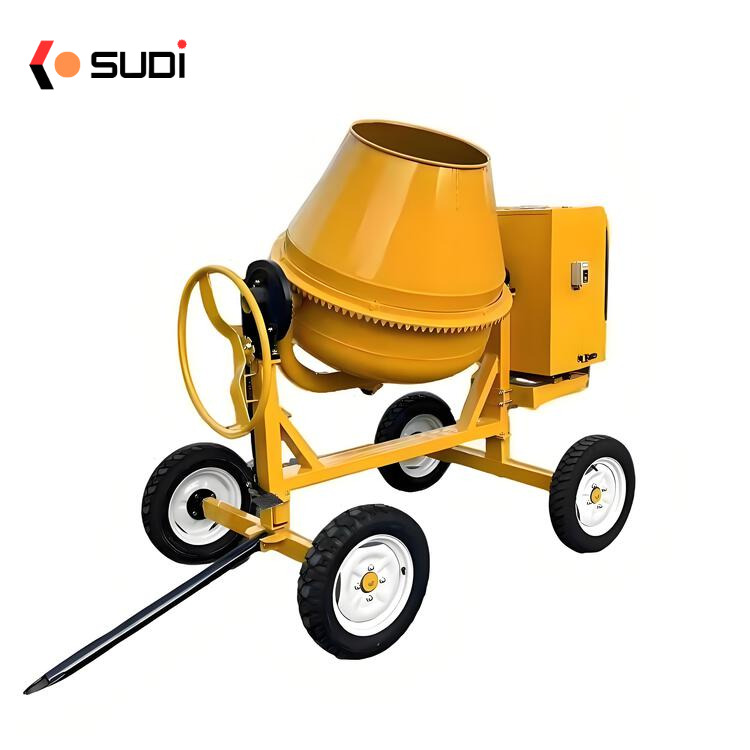

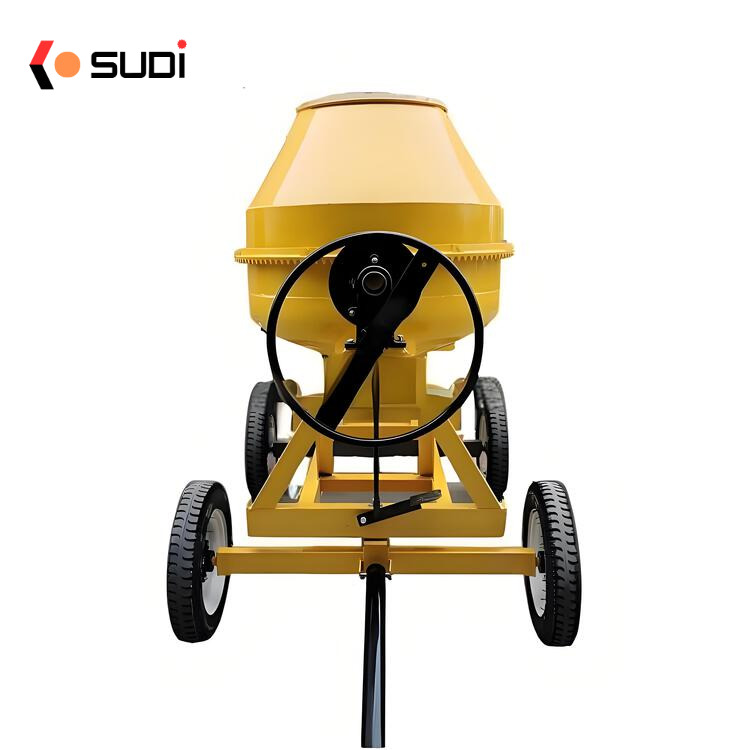

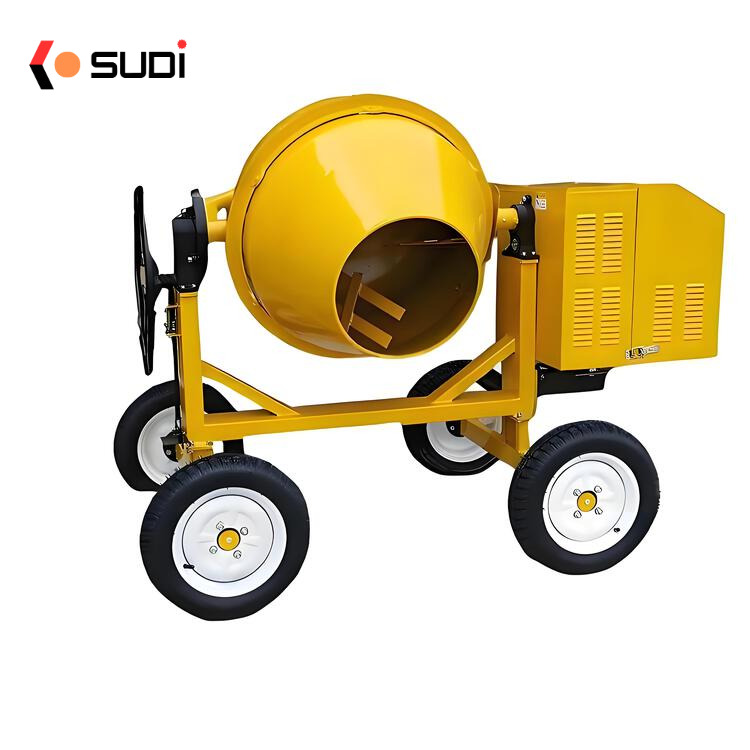

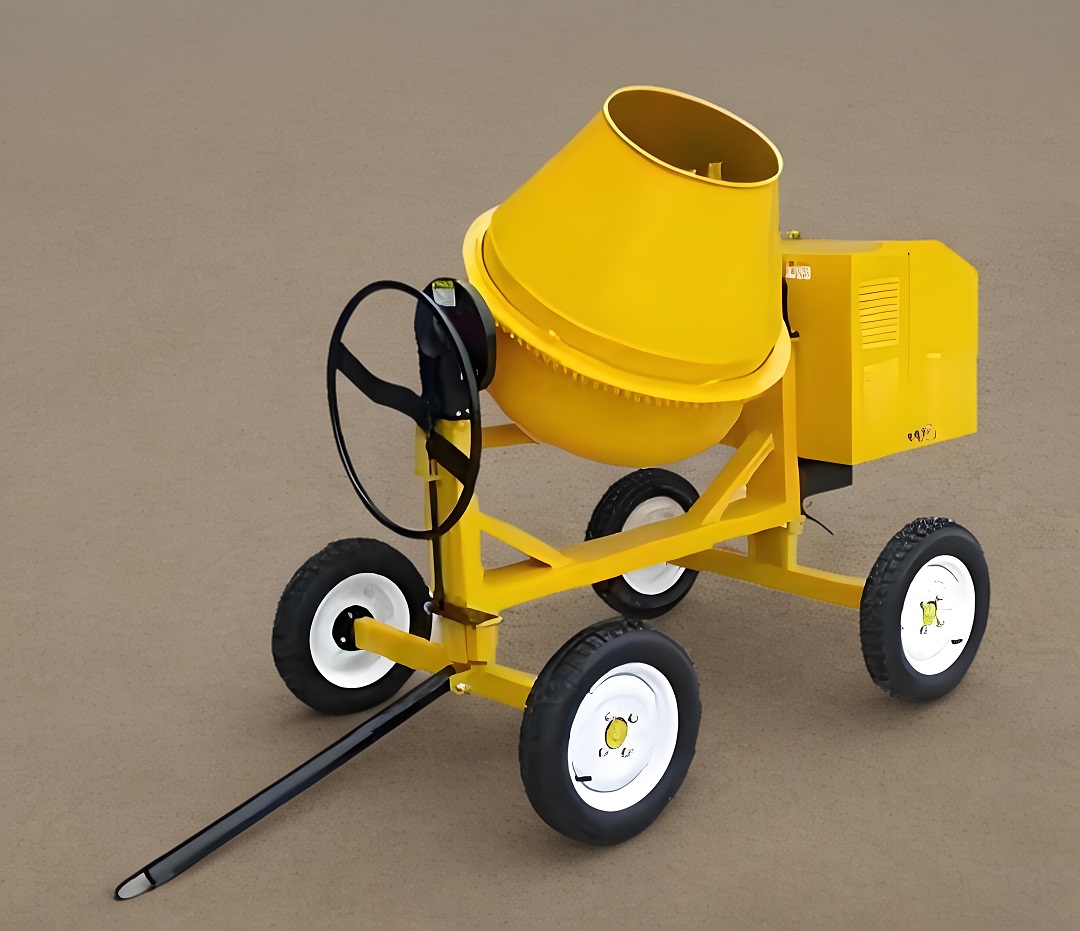

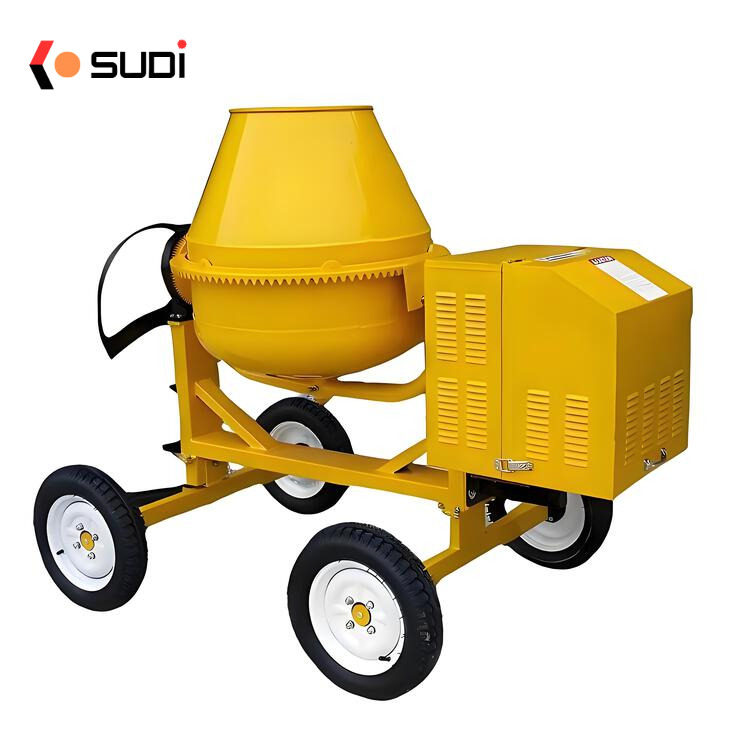

The inclined drum concrete mixer with diesel engine can not only use diesel, but also work with electricity!
This machine can be easily disassembled and transported, and is a mixer for various construction sites in areas without power supply and inconvenient for pulling power lines.
Concrete Mixer Specifications:
| Main Technical Parameter |
||||||||||
| Model |
CM350-2A/2C |
CM350-4A/4C |
CM400-2C |
CM400-4C |
CM500-2C |
CM500-4C |
CM500-4D |
|||
| DrumCapacity |
350 L |
350 L |
400 L |
400 L |
500 L |
500 L |
500 L |
|||
| Mixing Capacity |
280 L |
280 L |
320 L |
320 L |
400 L |
400 L |
400 L |
|||
| Productivity |
4~5m3/h |
4~5m3/h |
5~6m3/h |
5~6m3/h |
6~8m3/h |
6~8m3/h |
6~8m3/h |
|||
| Bags of Cement perBatch |
1 BagCement(50KG/bag) |
1.5BagCement |
||||||||
| Drum Rotation Speed |
25-30 |
25-30 |
25-30 |
25-30 |
25-30 |
25-30 |
25-30 |
|||
| Upper Drum Thickness |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
|||
| Bottom Drum Thickness |
3 mm |
3 mm |
3 mm |
3 mm |
4 mm |
4 mm |
4 mm |
|||
| Mixing Drum Size |
Φ800×900 mm |
Φ850×900 mm |
Φ950×900 mm |
|||||||
| Tyre Size and Number |
2×(4.00-12) |
4×(4.00-12) |
2×(4.00-12) |
4×(4.00-12) |
2×(4.00-12) |
4×(4.00-12) |
4×(4.00-12) |
|||
|
|
|
|
|
|
5.00-12 as option |
|||||
|
Power Option |
Air-cooledDiesel Engine 178FS(6HP) Air-cooled Diesel Engine186FS(10HP) Water-cooled Diesel EngineR175(6HP) Water-cooled Diesel EngineR180(8HP) Honda Gasoline EngineGX270(9HP) Electric Motor3KW |
|||||||||
| TotalWeight |
260 kg |
280 kg |
280 kg |
300 kg |
300 kg |
320kg |
360kg |
|||
| Overall Size(L×W×H ) |
1960×1100×1700 mm |
2100*1200*1800 mm |
2100*1200*1800mm |
|||||||
| 20GP |
20 SETS |
16 SETS |
12 SETS |
|||||||
| 40HQ |
40 SETS |
32 SETS |
24 SETS |
|||||||
