Concrete Mix JZC350/JSZ500 Product Img 1
JZC350/JZC500 Ring Gear
Usage: Construction site
Fuel: Electric
Model Number: JZC350/JZC500
Warranty: 1 Year for machinery warranty|1 Year for Core Components
Shipping: Support Sea freight
Customized packaging: Min.Order:2 Sets
Optional: Color (Green,Orange, Yellow)
0 / 0
close
Concrete Mix JZC350/JSZ500 Product Img 1
Concrete Mix JZC350/JSZ500 Product Img 2
Concrete Mix JZC350/JSZ500 Product Img 3
Concrete Mix JZC350/JSZ500 Product Img 4
Product Detail

Concrete Mix JZC350/JSZ500 Product Detail Img 1

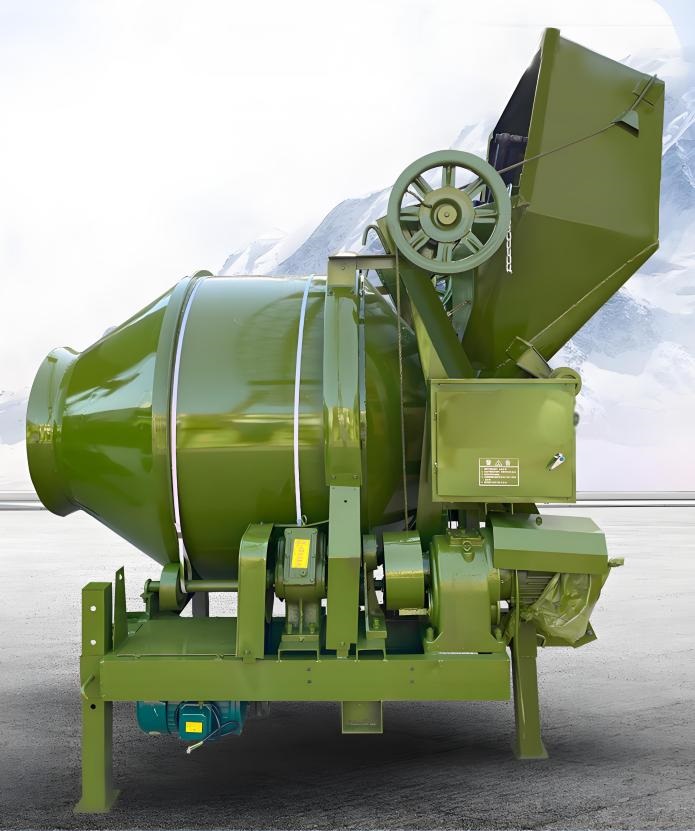

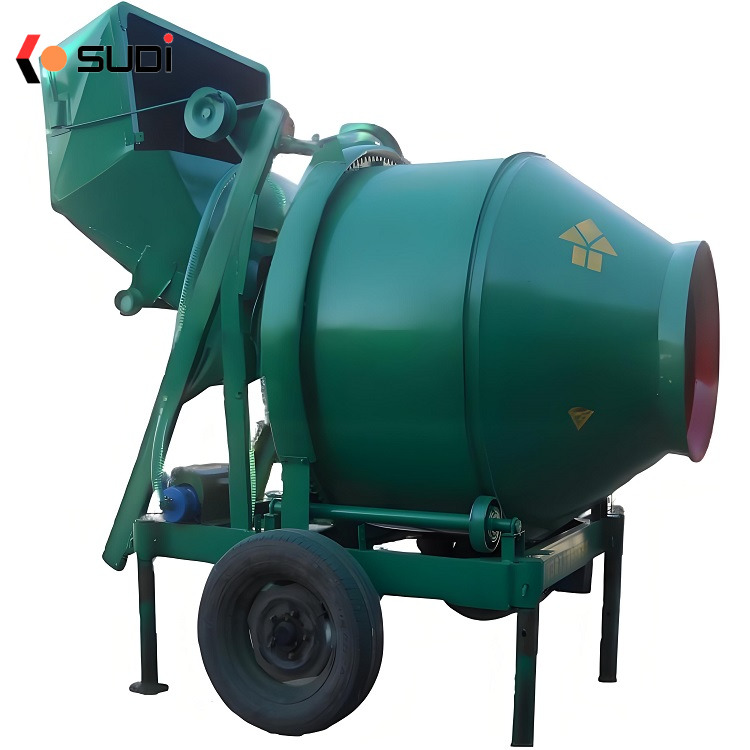

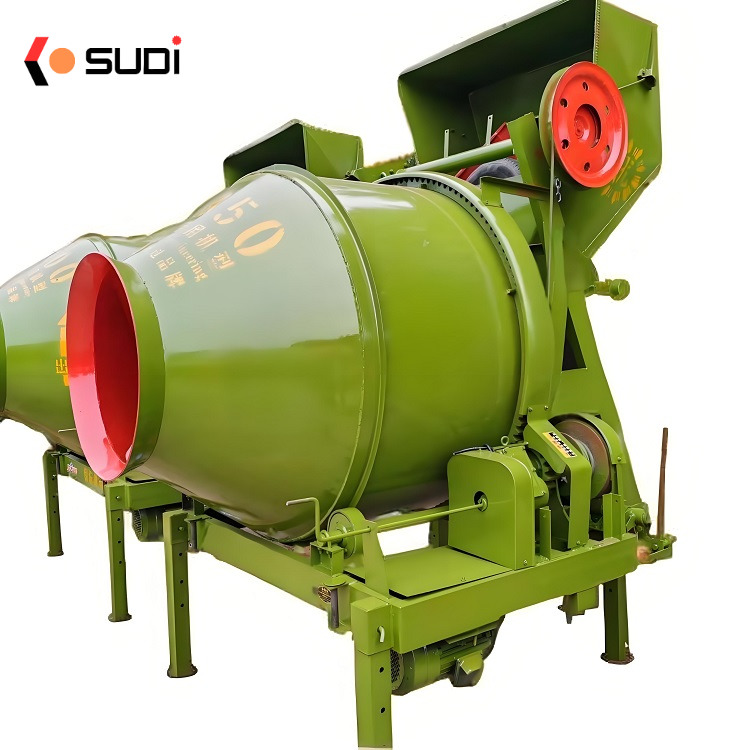

JZC350/JZM350 automatic drum movable concrete mixer, capable of automatic feeding. The mixing drum is driven by a gear ring and rotates forward for mixing and backward for discharging. It can mix plastic and semi dry hard concrete.


Main Technical Parameters:

Model InformationJZC350JZC500
Rated Feed Capacity560L800L
Rated Discharge Capacity350L500L
Mixing Power5.5KW7.5KW
Operation Control ModeElectricElectric
Theoretical Concrete Conveying Capacity10 - 14m³18 - 20m³
Maximum Aggregate Size40 - 60mm60 - 80mm
Discharge ModeSelf-dumpingSelf-dumping
Mixing Drum Speed14r/min14r/min
Size2760x2140x2780m3320x2460x3650m
Weight1250Kg1500Kg


Tips:Our company also offers other capacities, including 400L, 450L, 500L and 750L.
