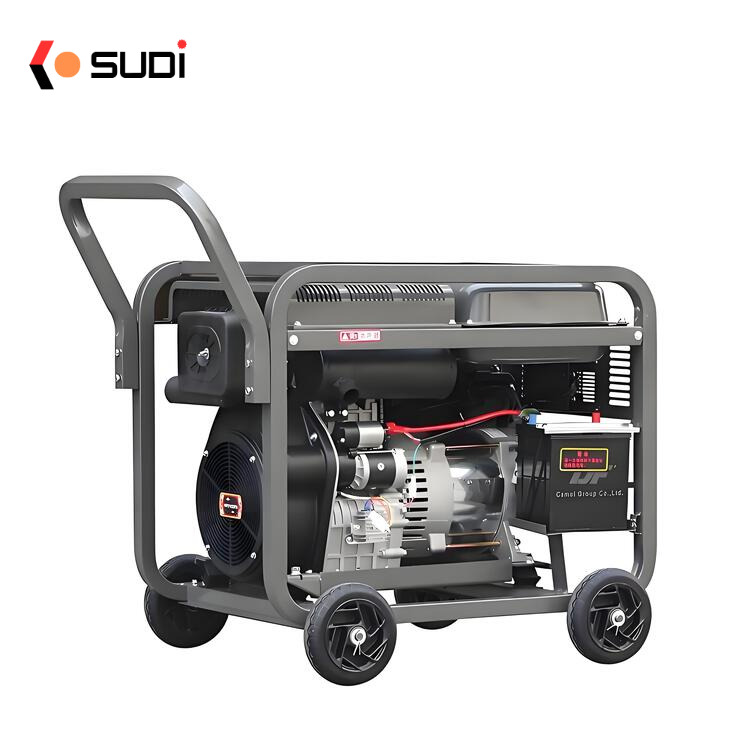

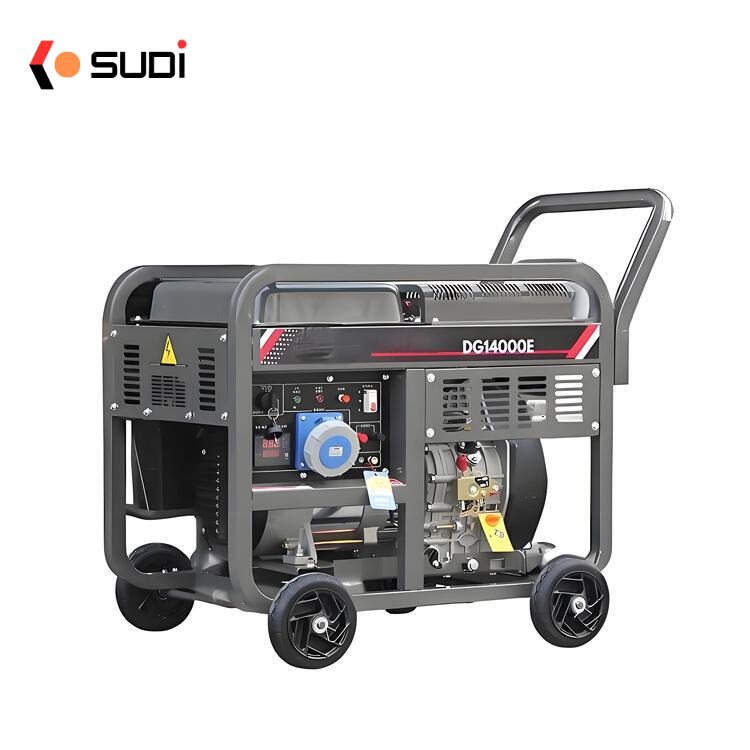

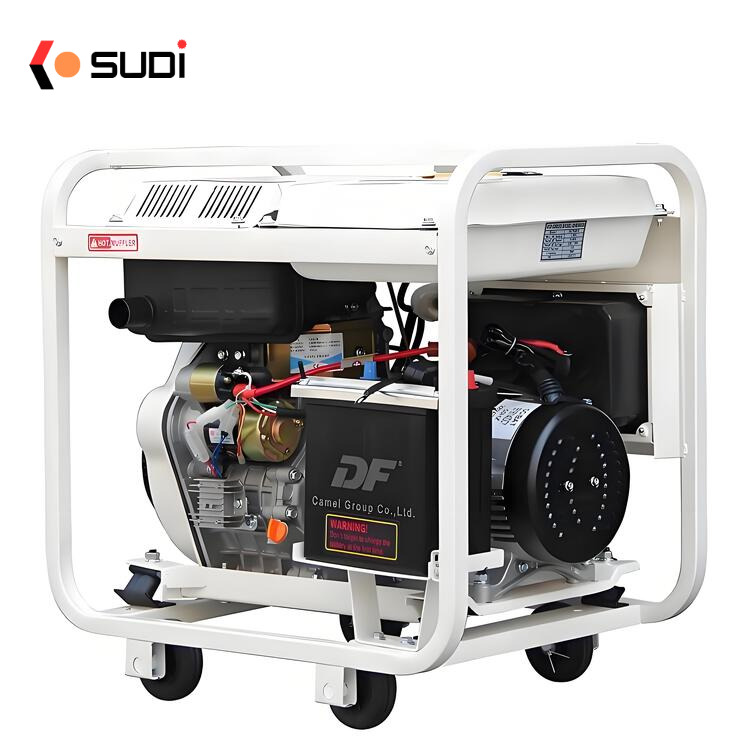

Generator Open Frame Diesel img 1
Open Frame Generator
Usage: Hotel,Industry,Mine,Port,Agriculture,Breeding,Municipal
Fuel: Diesel
Model Number: DG6000E/DG11000E/DG14000E
Warranty: 1 Year for machinery warranty
Shipping: Support Sea freight
Customized packaging: Min.Order:5 Sets
Product Detail

Generator 5KW Product Detail Img 1


Generator 5KW Product Detail Img 2


Main Technical Parameters:

ParameterValue

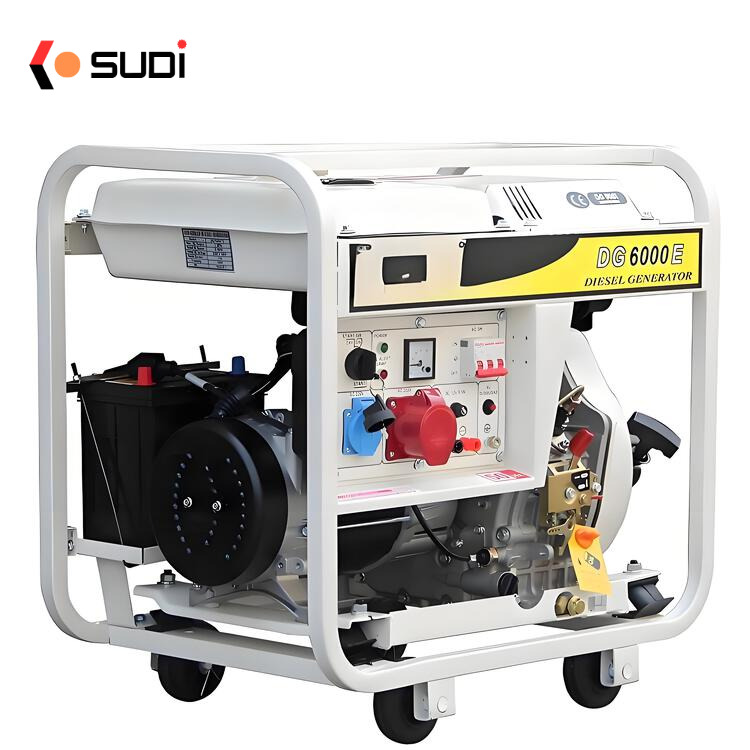

ModelDG6000E
Frequency (Hz)50/60
Maximum output (kw)5.0/5.5
Rated output (kw)4.6/5.0
Rated AC voltage (V)120, 220, 230, 120/240, 220/380
Power factor (cosĪ¦)cosĪ¦=1
DC output (V)12V/8.3A
PhaseSingle phase
Alternator typeSelf-excited, 2-pole, single phase alternator
Starting systemManual start or electric start
Noise level at 7m80 - 85
Fuel tank capacity (L)12.5
Continuous working hours8.5/7.8
ModelHR186FA
Engine typeSingle-cylinder, vertical, 4-stroke, air-cooled diesel engine
Bore x Stroke (mm)86x72
Fuel0# or -10# clean diesel oil
Lubricating oil volume (L)1.65
Combustion systemDirect injection
VoltmeterYes
AC output socket2
AC circuit breakerYes
Oil warning lightYes
Oil alertYes
DC circuit breakerOptional
CalculagraphOptional
Big wheelOptional
Three-phase voltageOptional
ATS (automatic transfer switch)Optional
Current meterOptional
Remote controlOptional
Welding functionOptional
Dimension (LWH) (mm)700x470x600
Net weight (kg)84


Our company also offers other models, welcome to negotiate by email.
