Specifications:

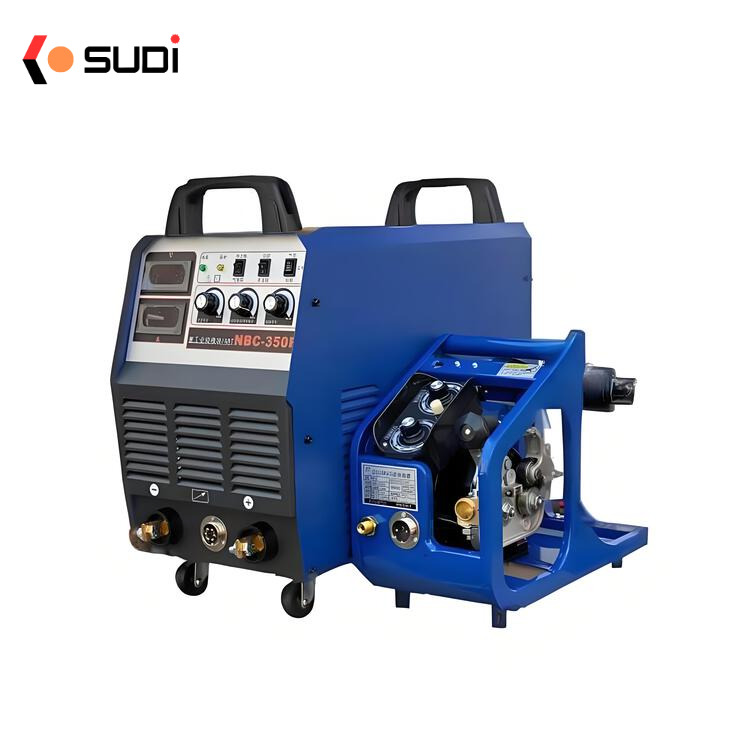

Model | NBC-350 | NBC-500 |
---|---|---|
Power supply voltage (V) | 380V + 15% | 380V + 15% |
Rated input capacity | 14.9 | 20 |
Output current adjustment | 50 - 350 | 50 - 500 |
Output voltage adjustment | 16.5 - 31.5 | 18 - 34 |
Electrode diameter | C2.5 - C5.0 | C2.5 - C6.0 |
Welding wire diameter | C0.8 - C1.2 | C0.8 - C1.6 |
General plate thickness | 1 - 20 mm | 1 - 30 mm |
Wire feeder form | Separate | Separate |
Overall dimension (mm) | 50*39*29 | 58*30*39 |
