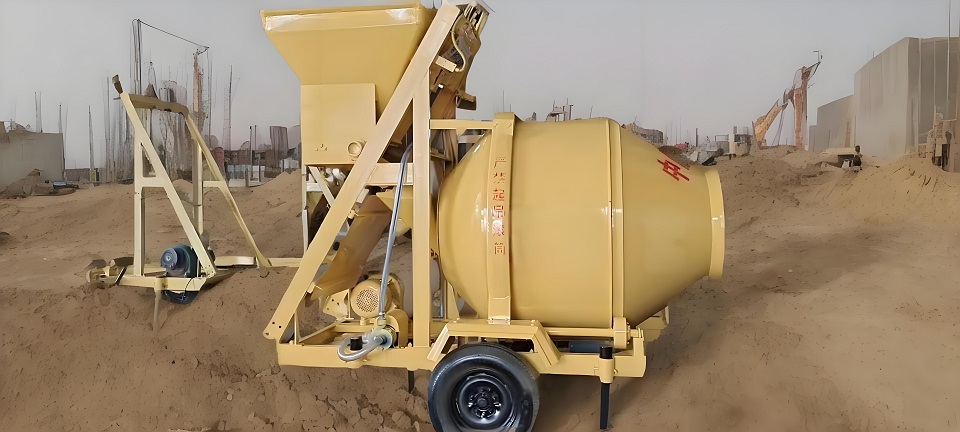

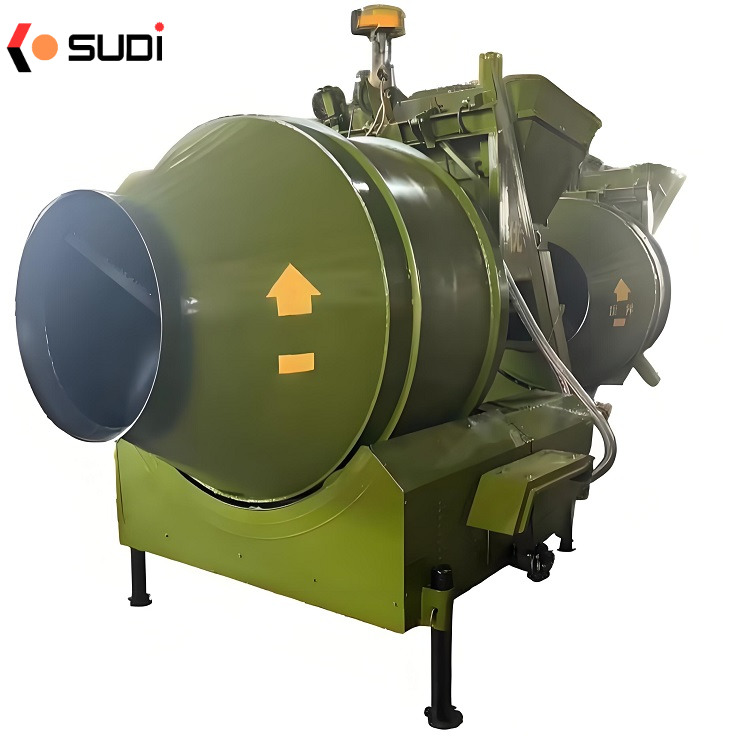

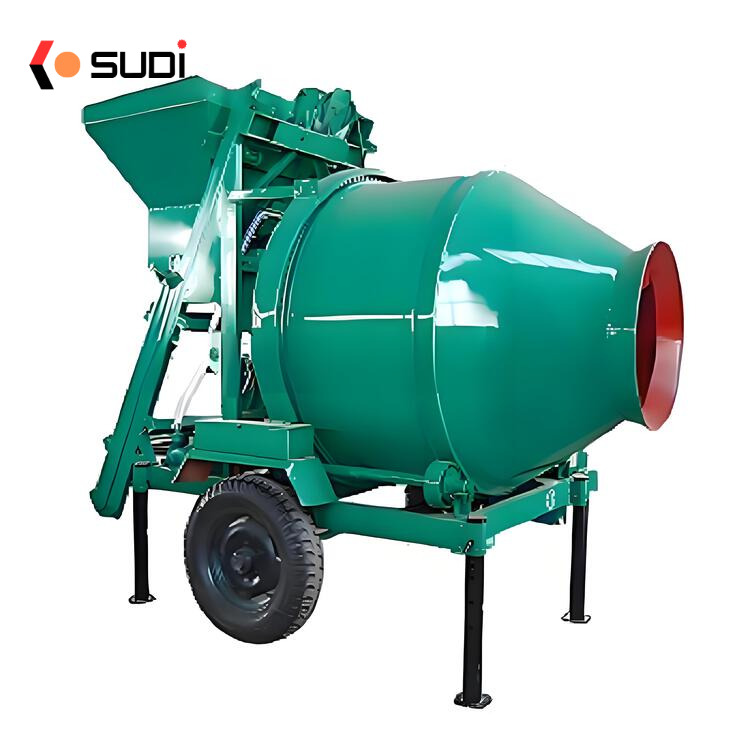

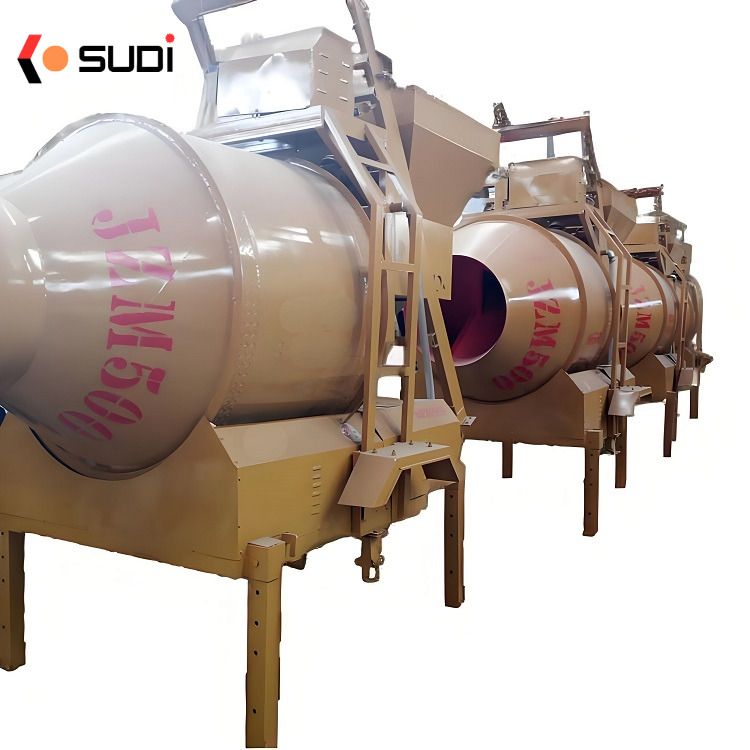

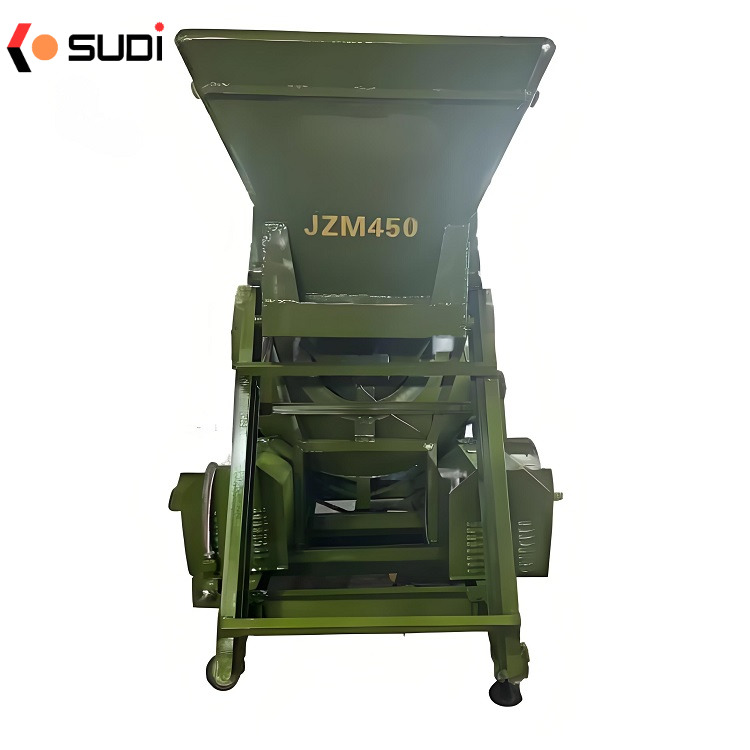

JZM350/JZM500 automatic drum movable concrete mixer, capable of automatic feeding. The mixing drum is driven by a gear ring and rotates forward for mixing and backward for discharging. It can mix plastic and semi dry hard concrete.
Main Technical Parameters:
| Model Information | JZM350 | JZM500 |
|---|---|---|
| Rated Feed Capacity | 560L | 800L |
| Rated Discharge Capacity | 350L | 500L |
| Mixing Power | 5.5KW | 11KW |
| Operation Control Mode | Electric | Electric |
| Theoretical Concrete Conveying Capacity | 13 - 18m³ | 18 - 20m³ |
| Maximum Aggregate Size | 40 - 60mm | 60 - 80mm |
| Discharge Mode | Self-dumping | Self-dumping |
| Mixing Drum Speed | 14r/min | 14r/min |
| Size | 3800x2050x2690m | 5710x2350x5050mm |
| Weight | 1200Kg | 1800Kg |
