Fuel series concrete vibrator:
| Model | Gasoline | Diesel |
|---|---|---|
| Power | 3.6KW | 3.5HP |
| Length | 52cm | 45cm |
| Width | 40cm | 37cm |
| Height | 43cm | 42cm |
| Weight | 22kg | 38kg |
| Optional rod tube length | 4/6/8/10m | 4/6/8/10m |

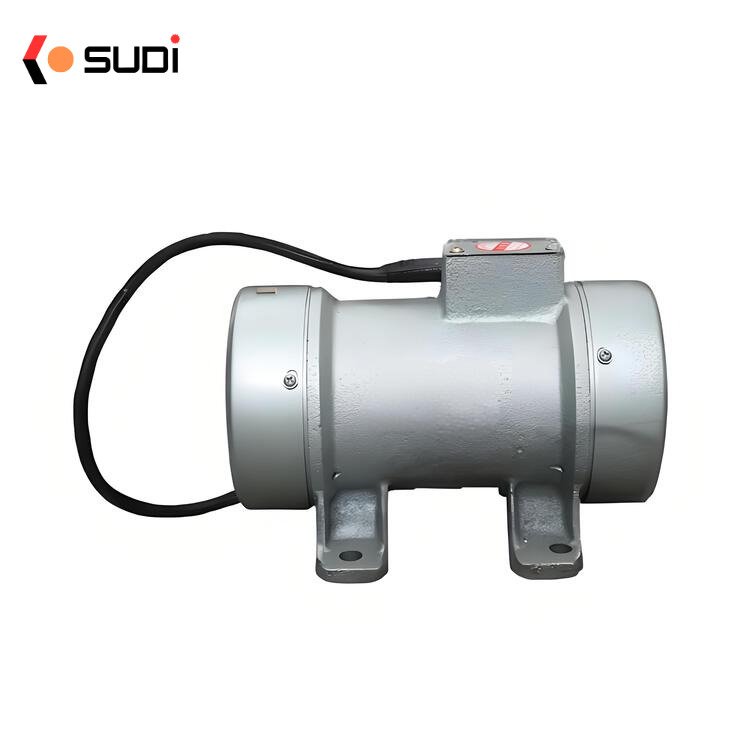

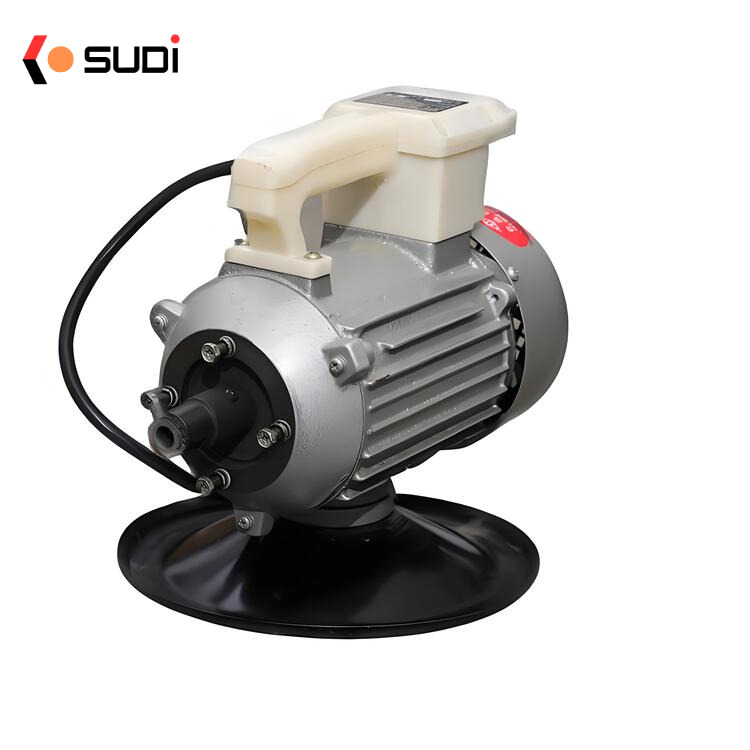

Electric series concrete vibrator:
| Model | 0.25KW | 1.5KW | 2.2KW | 3KW |
|---|---|---|---|---|
| Rated voltage | 220V/380V | 220/380V | 220/380V | 380V |
| Rated current | 1.25A | 3.24A | 4.62A | 3.64A |
| Power frequency | 50HZ | 50HZ | 50HZ | 50HZ |
| Rated speed | 2840r/min | 2840r/min | 2840r/min | 2840r/min |
| Machine size | 25*17*23CM | 32*17*26CM | 34*17*26CM | 36*17*29CM |
| Machine weight | 6KG | 10KG | 12KG | 15KG |
