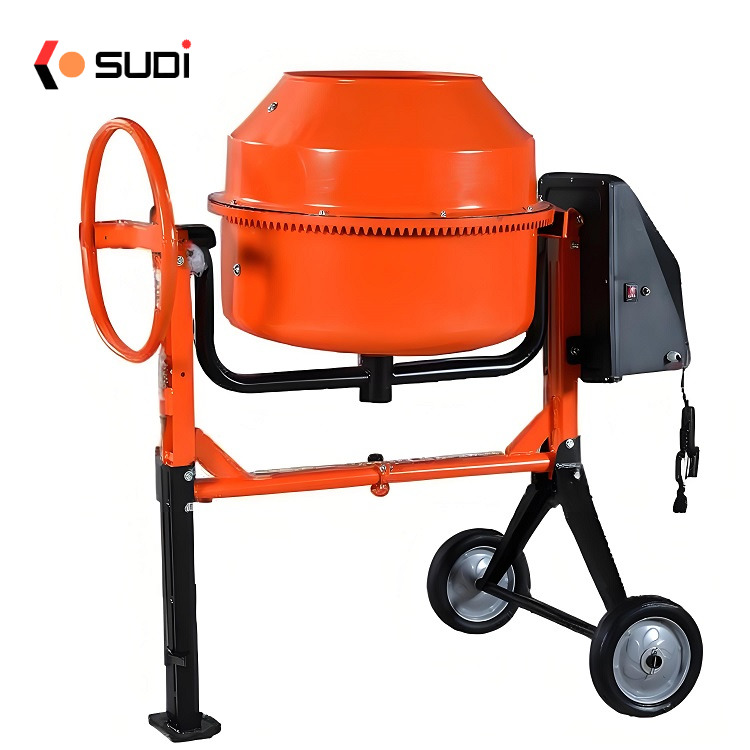

Concrete Mix Portable 350L Product Img 1
Electric Motors
Usage: Construction site
Fuel: Electric
Model Number: CM80H/CM120H/..CM260H
Warranty: 1 Year for machinery warranty|1 Year for Core Components
Shipping: Support Sea freight
Customized packaging: Min.Order:5 Sets
Optional: Color (Orange, Yellow, Blue)
0 / 0
close
Concrete Mix Portable 350L Product Img 1
Concrete Mix Portable 350L Product Img 2
Concrete Mix Portable 350L Product Img 3
Concrete Mix Portable 350L Product Img 4
Product Detail


Concrete Mixer Specifications:

ModelCM80HCM120HCM130HCM140HCM160HCM180HCM200HCM220HCM240HCM260H
DrumCapacity80L120L130L140L160L180L220L220L240L260L
Motor power250W550W550W550W650W800W800W750W750W750W
Drum Rotation Speed28-3228-3224-2924-2924-2924-2924-2920-2520-2520-25
Upper Drum Thickness1.2mm1.2mm1.5mm1.5mm1.5mm1.5mm1.5mm1.5mm15mm1.5mm
Bottom Drum Thickness1.5mm1.5mm2mm2mm2mm2mm2mm2mm2mm2mm
Mixing Drum Size330mm330mm380mm380mm380mm380mm380mm380mm380mm380mm
Overall Size(L×W×H)730*580*370mm730*580*430mm835*690*390mm835*690*430mm835*690*470mm835*690*480mm835*690*500mm970*760*460mm970*760*480mm970*760*500mm
W./N.W.38kg/41kg43kg/48kg51kg/56kg53kg/58kg57kg/61kg59kg/66kg60kg/67kg76kg/90kg82kg/91kg87kg/92kg
